1.Features
(1) Reasonable design
(2) Easy Installation
(3) Resistive Lithium Chloride Material
(4) Strict Inspection
(5) Widely Used in Power Generator set canopy, engine water tank and other machine.

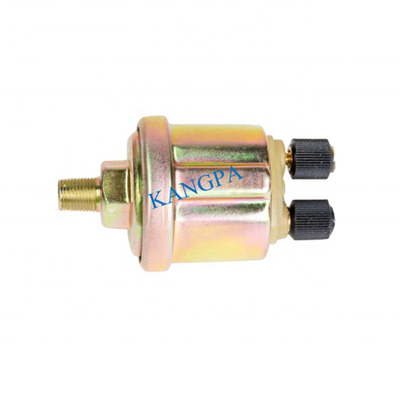

| Model: | Oil Pressure Sensor |
| Material: | Resistive Lithium Chloride |
| MOQ: | 20 pcs per item |
| Port: | Fuzhou,Shanghai or other port in China |
| Sample: | Free sample available, freight covered by customer |
| Packing: | PP bag+Box+Carton+Pallet |
| Payment Terms: | T/T,L/C at sight,Western Union,Money Gram |
| Brand: | KANGPA,Neutral or customer's brand |
| Delivery: | 5 work days after receipt of payment |
2.Technical Specification
Voltage:24V
Temperature:-25ºC ~ + 125ºC
Range:0 ~ 1.0 Mpa
Alarm Pressure:0.08 ±0.02 Mpa
Value of resistance from 0 to 1.0 Mpa:
| Oil Pressure | 0 | 0.2 | 0.4 | 0.6 | 0.8 | 1 |
| Resistance Ω | 10±2 | 52±8 | 88±4 | 124±5 | 155±5 | 187±10 |
3.Techcal Drawing
